Transponder Bendix/King KT76C (USADO)
O preço original era: R$7.500,00.R$7.000,00O preço atual é: R$7.000,00.

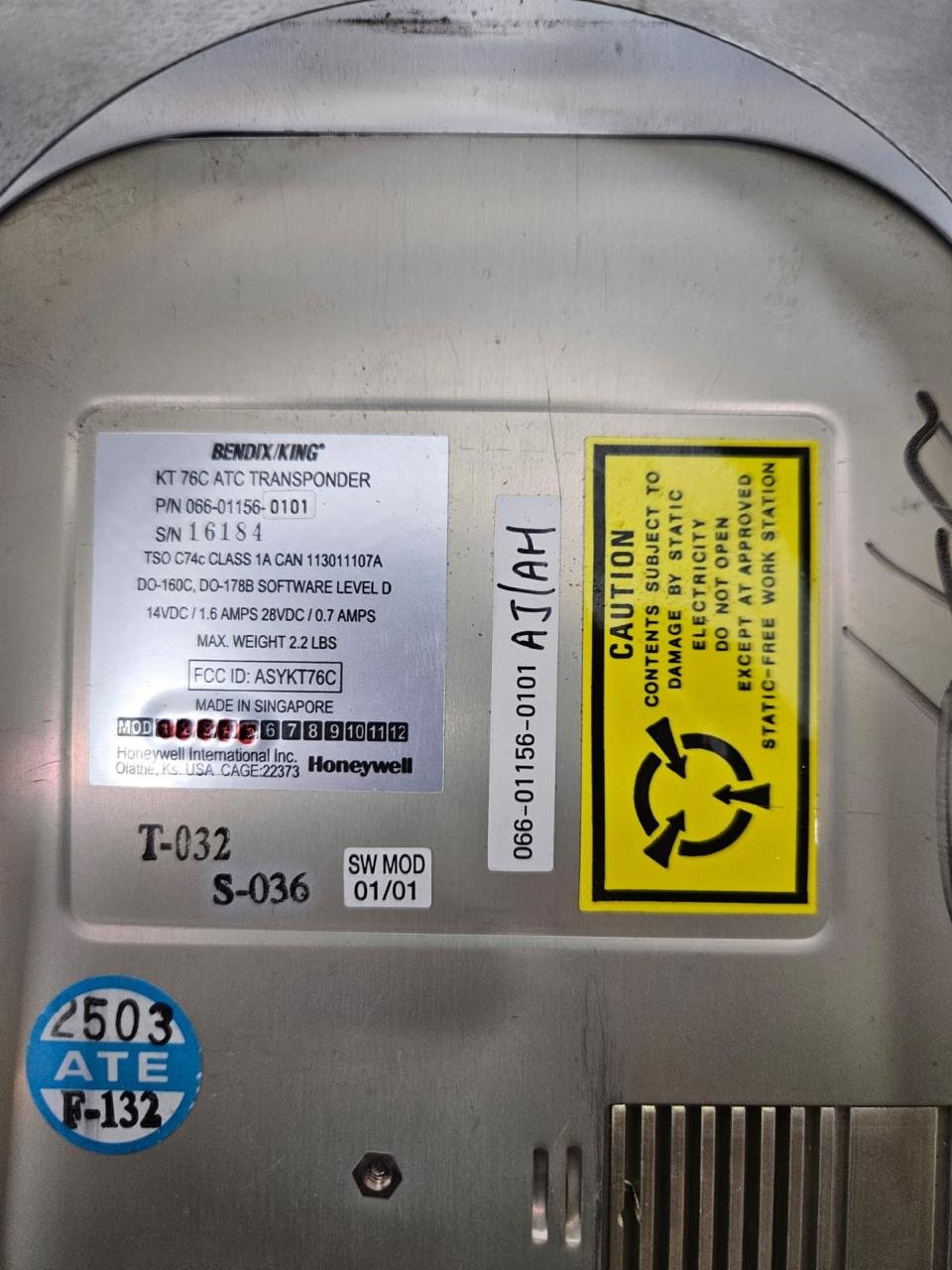

Transponder funcional, removido para Upgrade, possui registro de remoção.

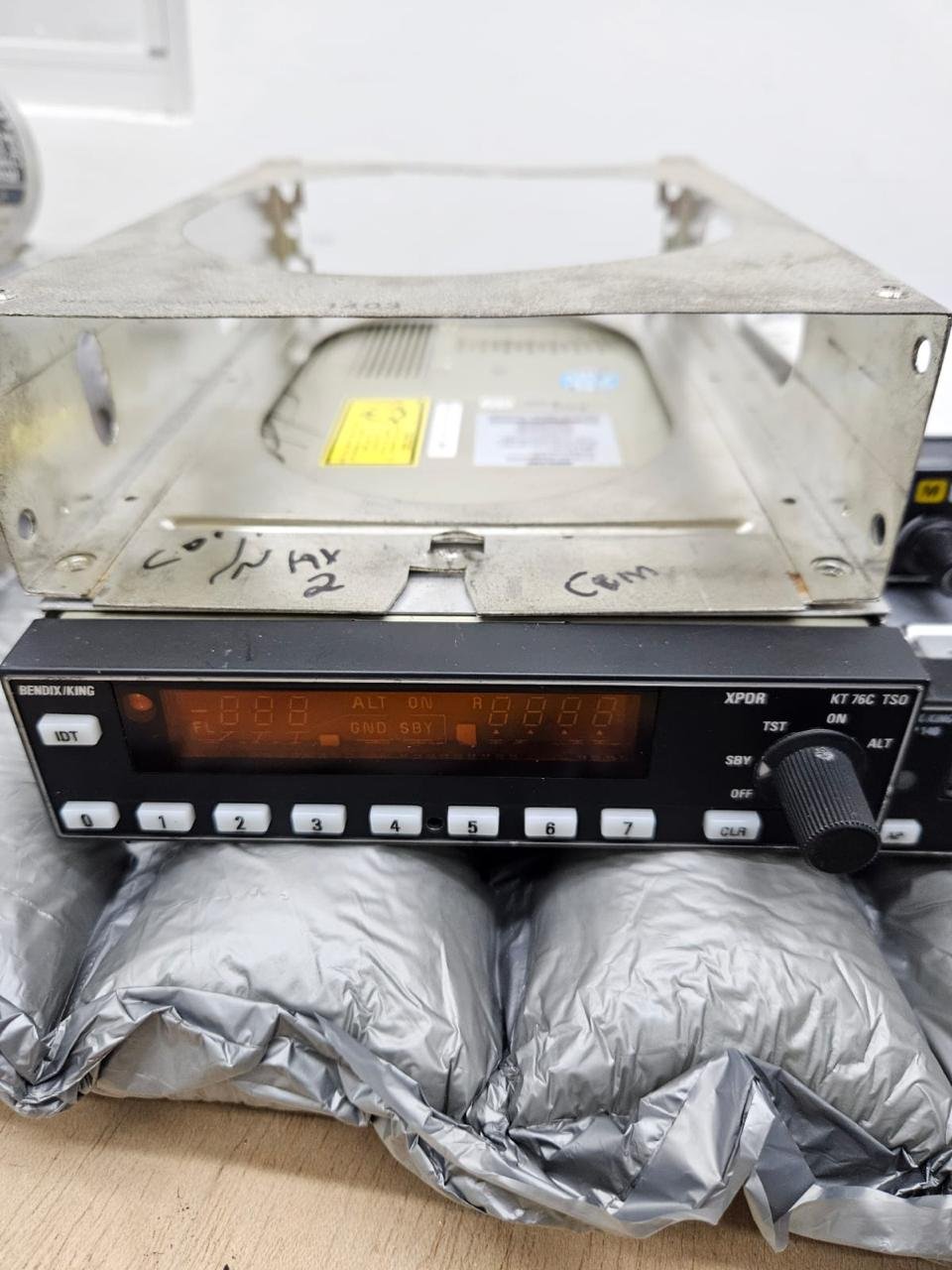

Transponder, Rack e Conectores
1Vendido(s)
Fora de estoque
Compre material aeronáutico com segurança
- Compra Segura
- Diversos meios de pagamento
- Disponível 24h, sem depender de Whatsapp
Descrição
KT-76C
FEATURES
- Digital Mode A/C, panel-mounted transponder with sequential pushbutton code entry
- Pre-set VFR code
- Operates with both 14 and 28 volt electrical systems
- Slide-in replacement for existing KT-76A (see FAQ for 14 and 28V considerations)
- Backlighting of bezel nomenclature and knobs
- 200 watts peak minimum transmitter power from PA Tube
- Operates up to 35,000 feet
- TSO’d
- -0201 version isolates transmitter from external load to prevent antenna and coax from pulling the transmitter off frequency; ideal for aircraft with longer coax runs
SPECIFICATIONS
| SIZE: | 6.25″W x 1.63″H x 10.73″L | WEIGHT: | 2.0 lbs. |
| APPLICABLE DOCUMENTS: | TSO C74c Class 1A, RTCA DO-160C, DO-178B | TEMPERATURE RANGE: | Range:-20 to +55C for continuous operation |
| TRANSMITTER FREQUENCY: | 1090 MHz +-3 MHz | RECEIVER FREQUENCY: | 1030 MHz +-0.2 MHz (crystal controlled local oscillator |
| RECEIVER SENSITIVITY: | -73dBm (nominal); -69dBm (min. for 90% reply) | MODE A CAPABILITY: | 4096 identity codes plus Special Identification Pulse |
| MODE C CAPABILITY: | Accepts standard ICAO Altitude Transmission Code digitizer output, reporting in 100 ft. increments from -1000 ft. throughout operating range | POWER REQUIREMENTS: | 14 volt-1.24A (max) standby mode .68A or 28 volt-0.63A |
Informação adicional
| Peso | 4 kg |
|---|---|
| Dimensões | 30 × 30 × 30 cm |
